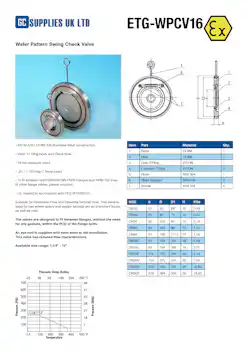

Wafer Pattern Swing Check Valve ETG-WPCV16
S/Steel Wafer Pattern Swing Check Valve ETG-WPCV16
Logo

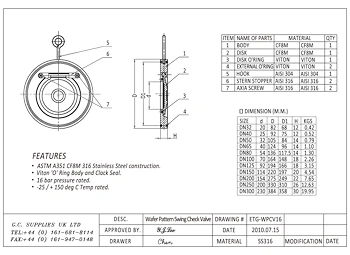

ETG-WPCV16

check valves

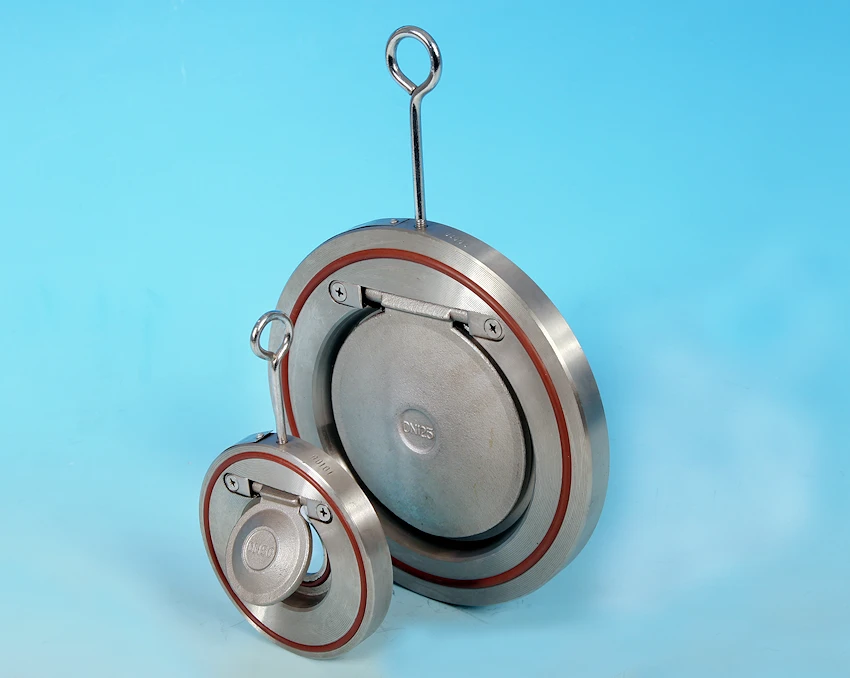

Wafer Pattern Swing Check Valve

ASTM A351 CF8M 316 Stainless Steel construction.
Viton 'O' Ring Body and Clack Seal.

16 bar pressure rated.
-25 / + 150 deg C Temp rated.

To fit between both BS4504 DIN PN16 Flanges and ANSI 150 (may fit other flange tables, please enquire).
CE marked in accordance with PED 97/23/EC

Suitable for Horizontal Flow and Upwards Vertical Flow. This valve is ideal for use where space and weight savings are an important factor, as well as cost.

The valves are designed to fit between flanges, without the need for any gaskets, within the PCD of the flange bolts.

An eye bolt is supplied with each valve to aid installation.
This valve has reduced flow characteristics.

Available size range: 1.1/4” - 12”

Additional Information:

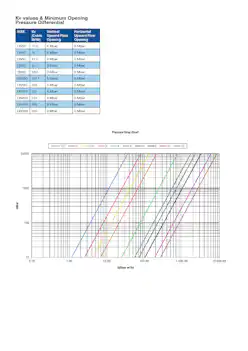

Kv values & Minimum Opening Pressure Differential

 Size Kv (Cubic M/Hr) Vertical Upward Flow opening Horizontal Flow opening
 1.25" 10.6 6 Mbar 0 Mbar
 1.5" 16 6 Mbar 0 Mbar
 2" 27.5 6 Mbar 0 Mbar
 2.5" 45.5 6 Mbar 0 Mbar
 3" 68.8 6 Mbar 0 Mbar
 4" 112.7 6 Mbar 0 Mbar
 5" 168 6 Mbar 0 Mbar
 6" 231 6 Mbar 0 Mbar
 8" 314 9 Mbar 0 Mbar
 10" 425 9 Mbar 0 Mbar
 12" 550 9 Mbar 0 Mbar

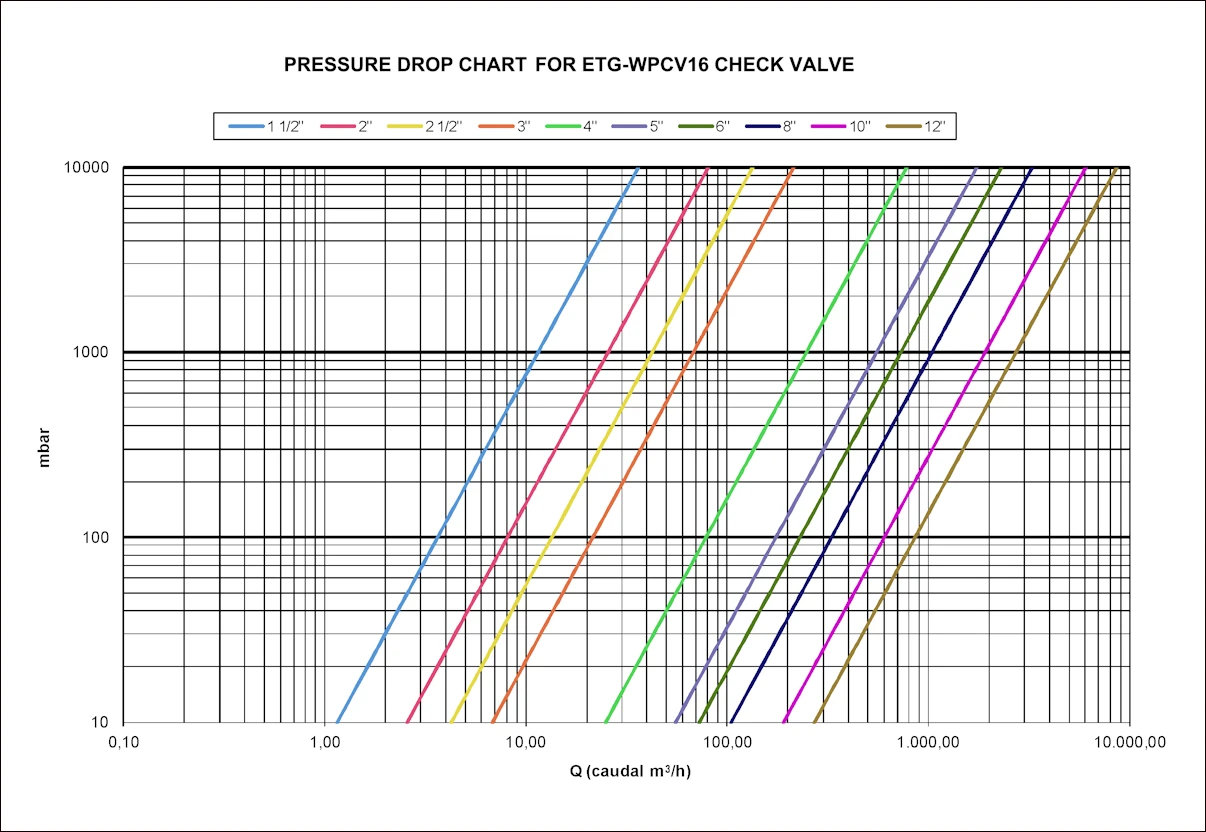

pressure drop chart

Please consult with our Sales Office for an alternative product if the above does not meet with your requirements.


For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
