NTC KV-L6N PN40 Flanged

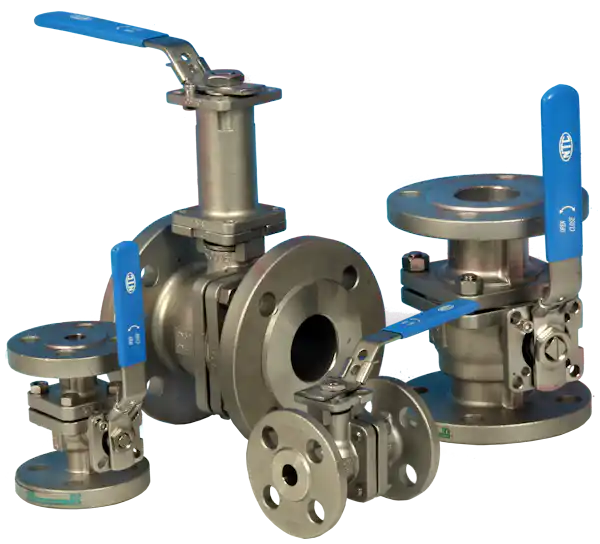

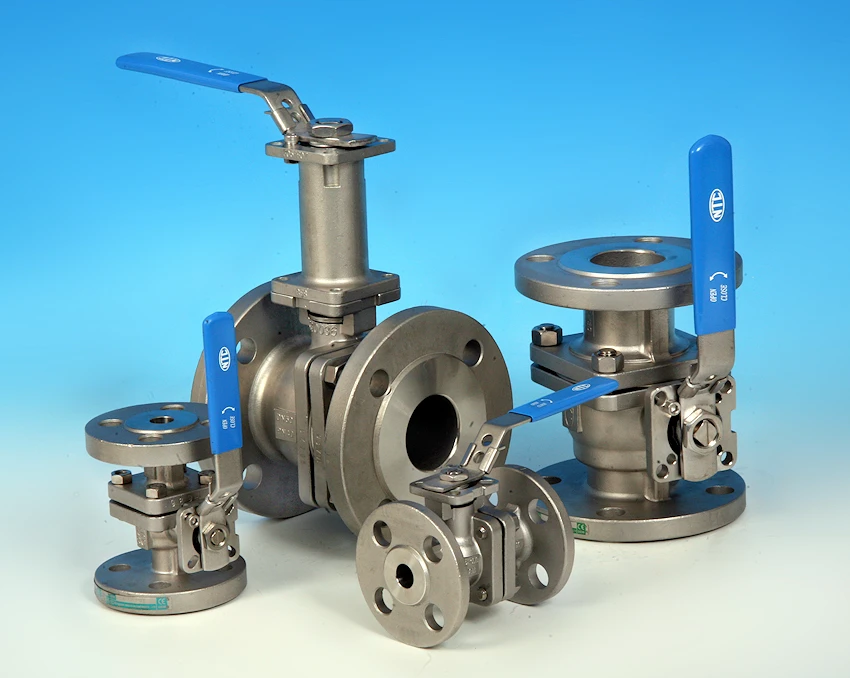

2-Pce Full Bore Flanged DIN PN40 Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil/316 Body Seal and Grafoil Stem packing.
Ta-Luft self adjusting stem sealing. ISO 15848 Certified.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX Certified.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.

1/2" - 2.1/2" Lever Operated with Locking Device
3" - 8" T-Bar Operated with Locking Device

Available size range: 1/2” - 6”

Please see KV-L6K for PN16 Flanged Valves

Options available:

 50% S/S Filled, TFM 4215® (25% Carbon Filled TFM) & UHMWPE Ball Seats 50% S/S Filled, TFM 4215® (25% Carbon Filled TFM) & UHMWPE Ball Seats
30, 60 and 90 Deg V-Ball for modulation duties 30, 60 and 90 Deg V-Ball for modulation duties.
100mm/120mm high Spindle Extension for Insulation & Steam Actuation 100mm/120mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever Direct Mount Spring Handle/Lever
Fabricated Stainless Steel Heating Jacket Fabricated Heating Jacket
Upstream Ball and Cavity Relief hole drilled into Stainless Steel Ball Upstream Ball and Cavity Relief hole drilled into Ball
Carbon Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61-C Double Block & Bleed Assembly

Design Rating: DIN3357 / 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266

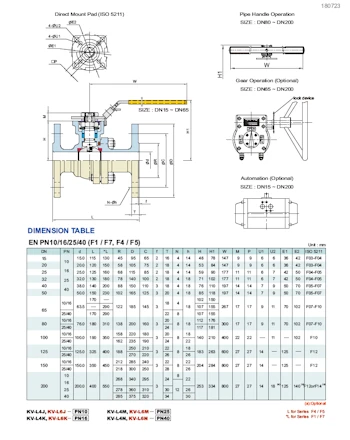

Face to Face Dimension:
DIN 3202 F-4 (1/2" - 4") and DIN 3202 F-5 (5" - 6")

Approvals:

PED 2014/34/EU
EN 14432:2014
ATEX II 2G h ExIIB T3 Gb
ATEX II 2D h IIIC T180c Db
Firesafe API 607 5th Ed /ISO 10497-5:2004
EN ISO 15848-1:2015
DNV Approval
SIL 2 (IEC 61508 & IEC 61511)
Ta-Luft VDI 2440
Lloyds Register Approval
Nace MR-0175

Additional Information:

Installation, Operation & Maintenance Instructions

MAST (Maximum Allowable Stem Torque)

Top Works (Please select a size to view information):
Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61 Stainless Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate Firesafe Certificate
