ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
Delrin (POM) Ball Seats and R-PTFE Seals. 3000 psi/g Pressure rated.
-25 / + 80 Deg C Temperature rated.
Unsuitable for Oxygen duty and elevated temperatures.
ISO 5211 Direct Mounting Pad with Lockable Lever.
BSPP (ISO 228-1) and NPT (ASME B1.20.1) End Connections.

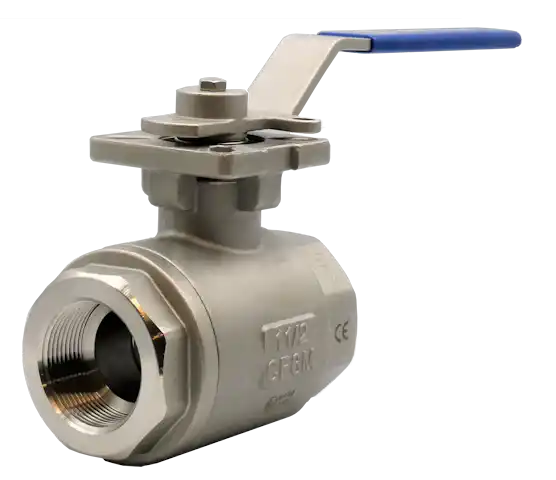

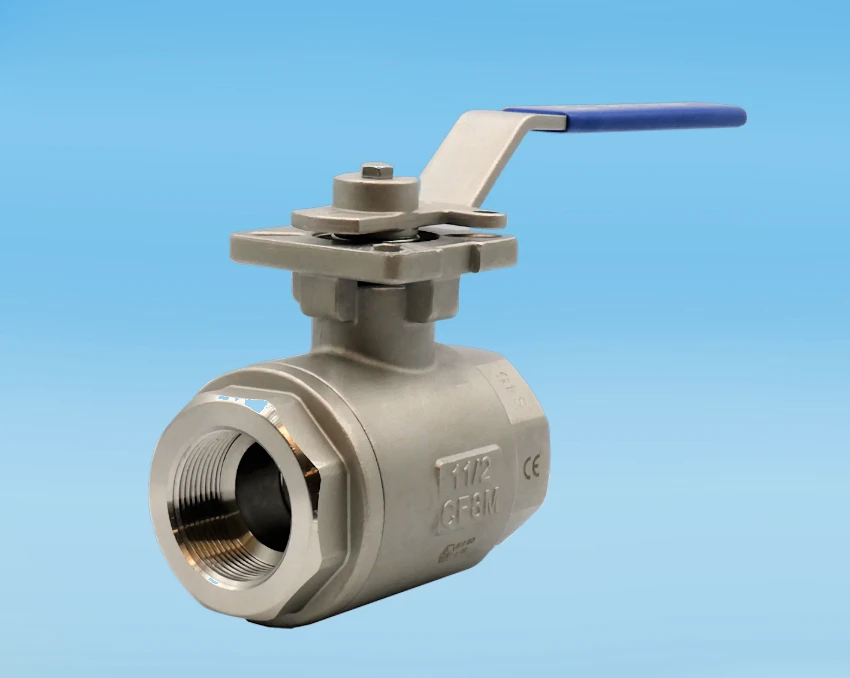

A good quality, high cycle life ball valve suitable for most High Pressure Liquid and Gaseous duties. Must NOT be used on Oxygen service.
Full material Test Certificates available EN10204 3.1
Test standard – API 598
NPT Ends - ASME B1.20.1
BSPP Ends - ISO 228-1
Available size range: 1/4” - 2”
| Size | 1/4” | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" |
|---|---|---|---|---|---|---|---|---|
| ISO 5211 | F03/F04 | F03/F04 | F03/F04 | F03/F04 | F04/F05 | F04/F05 | F05/F07 | F05/F07 |
| Stem | 9 mm | 9 mm | 9 mm | 9 mm | 11 mm | 11 mm | 14 mm | 14 mm |
| Torque * | 8 Nm | 8 Nm | 8 Nm | 13 Nm | 15 Nm | 25 Nm | 30 Nm | 36 Nm |
| Cv | 27.7 | 27.7 | 32.95 | 57.8 | 98.3 | 162 | 208 | 208 |
| Kv | 24 | 24 | 28.5 | 50 | 85 | 140 | 180 | 180 |
| Weight | 0.80 Kg | 0.78 Kg | 0.76 Kg | 1.00 Kg | 1.56 Kg | 2.44 Kg | 3.62 Kg | 4.76 Kg |
