F316L Stainless Steel Construction.
FDA Food Grade PTFE Seals fitted as standard.
Borosilicate Tempered Glass.
145 psi (10 bar/g) pressure rated.
-10 to +160 deg C max Temp.
Plain Weld Ends to weld directly onto a Tank or Vessel or suit Imperial O/D BS4825 Tubing.
3.1 Material Certificates available upon request

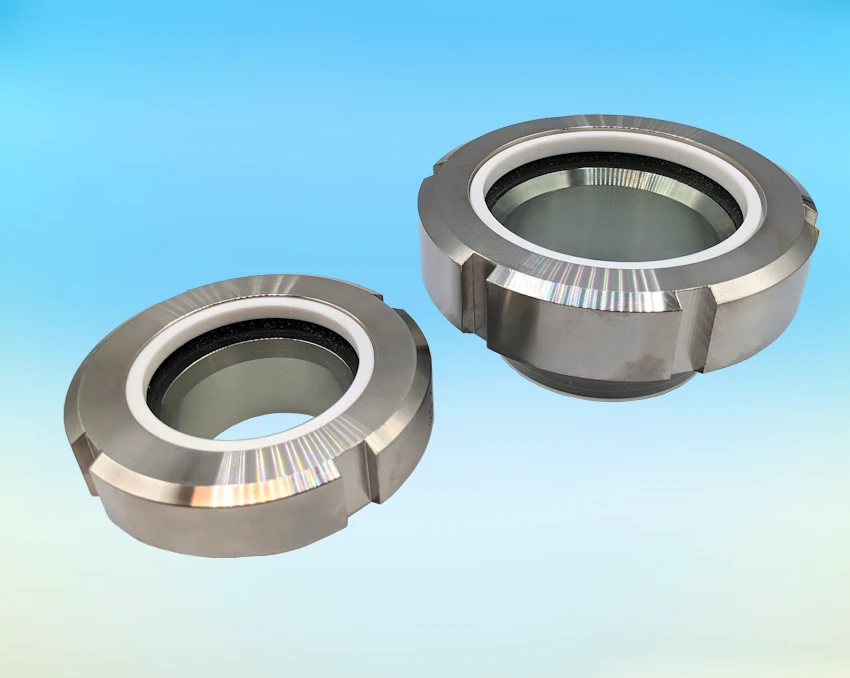

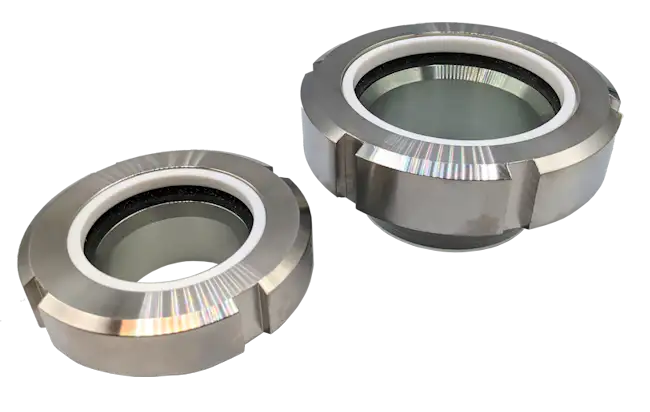

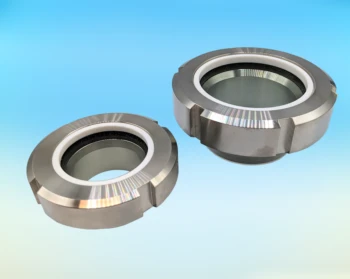

A good all round, robust general purpose Hygienic Tank Sight Glass.
Compact and robust design.
PTFE Seal conforms to FDA 177.2600 standards.
0.8 Ra Polish on internals.
Available size range: 2” and 3” in stock
For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
