Brackets and Hangers

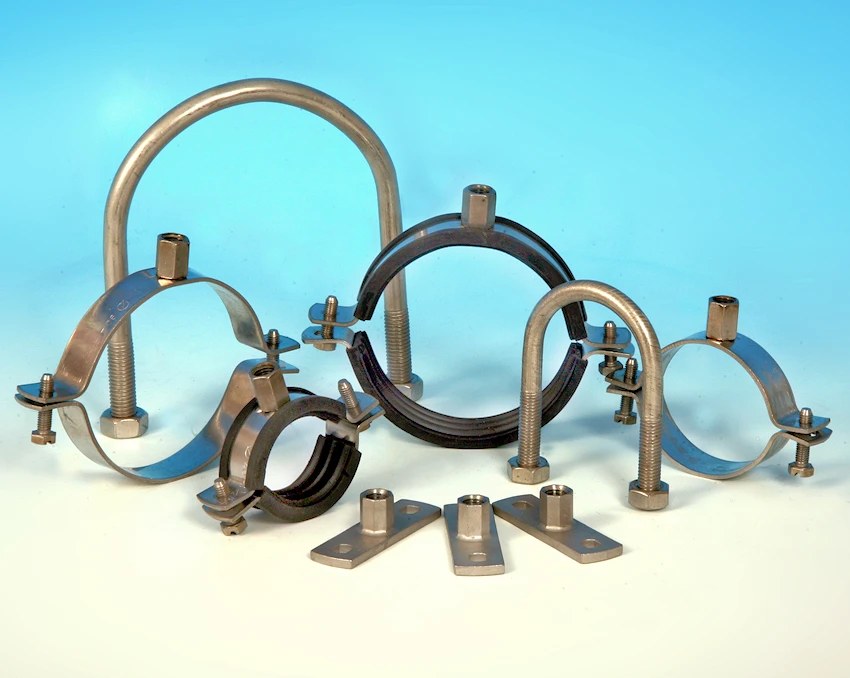

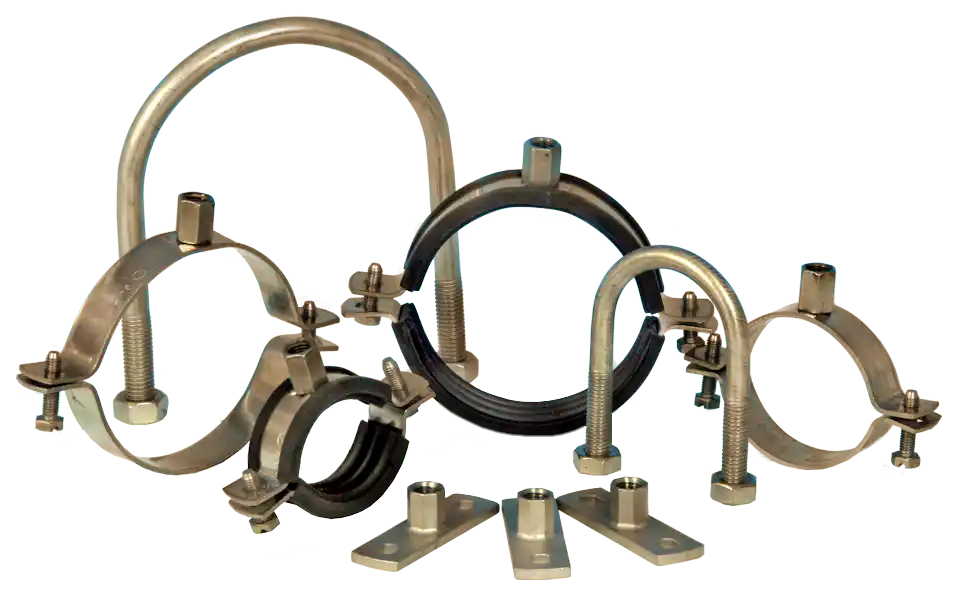

A large range of Hangers and Brackets are available from stock.
We carry Single Pipe Rings, otherwise known as Munsen Rings, in either Lined (Black EPDM) or Unlined 316 Stainless Steel with dual tapped M8/M10 connections as well as 316 Stainless Steel U-Bolts c/w Nuts.

Dual tapped M8/M10 Base Plates and Metric Studding in 316 Stainless Steel are also available from stock.

Stainless Steel Pipe Hangers and Brackets

Stainless Steel Standard Unlined Pipe Bracket (Munsen Ring) manufactured from 316 Stainless Steel with Dual Tapped M8/M10 threaded connection. Bright electro polished finish with “quick fit” assembly screw.


Stainless Steel Standard Unlined Pipe Bracket Munsen RingSize Range:

Pipe Size Fitment Size Range Tapping
3/8” nb 15mm - 18mm M8/M10 Dual Tapped
1/2” nb 18mm - 23mm M8/M10 Dual Tapped
3/4” nb 26mm - 31mm M8/M10 Dual Tapped
1” nb 32mm - 35mm M8/M10 Dual Tapped
1.1/4” nb 38mm - 43mm M8/M10 Dual Tapped
1.1/2” nb 47mm - 51mm M8/M10 Dual Tapped
54mm metric 50mm - 56mm M8/M10 Dual Tapped
2” nb 57mm - 61mm M8/M10 Dual Tapped
2.1/2” nb 70mm - 73mm M8/M10 Dual Tapped
3” nb 83mm - 91mm M8/M10 Dual Tapped
104mm metric 101mm - 106mm M8/M10 Dual Tapped
4” nb 108mm - 114mm M8/M10 Dual Tapped
5” nb 140mm - 144mm M8/M10 Dual Tapped
6” nb 165mm - 169mm M8/M10 Dual Tapped



Stainless Steel Pipe Hangers and Brackets

Stainless Steel/EPDM Rubber lined Isophonic Pipe Bracket (Munsen Ring) manufactured from 316 Stainless Steel with Dual Tapped M8/M10 threaded connection. Bright electro polished finish with “quick fit” assembly screw.


Stainless Steel/EPDM Rubber lined Isophonic Pipe Bracket Munsen RingSize Range:

Pipe Size Fitment Size Range Tapping
3/8” nb 15mm - 19mm M8/M10 Dual Tapped
1/2” nb 20mm - 23mm M8/M10 Dual Tapped
3/4” nb 26mm - 28mm M8/M10 Dual Tapped
1” nb 32mm - 35mm M8/M10 Dual Tapped
1.1/4” nb 40mm - 43mm M8/M10 Dual Tapped
1.1/2” nb 44mm - 49mm M8/M10 Dual Tapped
54mm metric 50mm - 56mm M8/M10 Dual Tapped
2” nb 57mm - 61mm M8/M10 Dual Tapped
2.1/2” nb 70mm - 73mm M8/M10 Dual Tapped
3” nb 83mm - 91mm M8/M10 Dual Tapped
4” nb 108mm - 114mm M8/M10 Dual Tapped
5” nb 140mm - 144mm M8/M10 Dual Tapped
6” nb 165mm - 169mm M8/M10 Dual Tapped



Stainless Steel Pipe Hangers and Brackets

Stainless Steel U-Bolt manufactured from 316 Stainless Steel supplied complete with Hex Nuts.


UboltSize Range:

Pipe Size Thread Diameter Inside Width Inside Length
1/2" nb M6 22mm 46mm
3/4” nb M6 29.5mm 52mm
1” nb M6 36mm 64mm
1.1/4” nb M10 46mm 70mm
1.1/2” nb M10 50mm 83mm
2" nb M10 64mm 85mm
2.1/2” nb M10 77mm 102mm
3" nb M12 93mm 117mm
4” nb M12 118mm 140mm
6" nb M12 171mm 195mm
8” nb M16 217mm 265mm



Stainless Steel Pipe Hangers and Brackets

Stainless Steel/EPDM Blue Rubber lined Pipe Bracket for Hygienic Pipework. Manufactured from 304 Stainless Steel with 3/4” O/D Weld Stub connection. Bright electro polished finish with Nyloc Nuts and M8 Bolts.


Stainless Steel/EPDM Blue Rubber lined Pipe BracketSize Range:

Pipe Size Fitment Size Range Connection
1/2” O/D 12mm - 20mm 19.5mm O/D Weld Stud
3/4” O/D 12mm - 20mm 19.5mm O/D Weld Stud
1” O/D 23mm - 26mm 19.5mm O/D Weld Stud
1.1/2” O/D 35mm - 40mm 19.5mm O/D Weld Stud
2” O/D 48mm - 52mm 19.5mm O/D Weld Stud
2.1/2” O/D 60mm - 65mm 19.5mm O/D Weld Stud
3” O/D 73mm - 78mm 19.5mm O/D Weld Stud
4” O/D 100mm - 103mm 19.5mm O/D Weld Stud
6” O/D 150mm - 154mm 19.5mm O/D Weld Stud



Other sizes available upon request to suit Nominal Bore and Metric Pipe. Other connections such as M8 or M10 available on special order.



Stainless Steel Pipe Hangers and Brackets

Stainless Steel Hinged Pipe Bracket (Hinge Clip) manufactured from 304 Stainless Steel with 1/2” BSP female threaded boss. Bright electro polished finish. “Quick fit” style hinged pipe brackets are to suit Hygienic Pipework only.


Stainless Steel Hinged Pipe Bracket (Hinge Clip)Size Range:

Pipe Size Fitment Size Range Tapping
1/2” nb 12.7 mm 1/2” BSPP Female
3/4” nb 19.05 mm 1/2” BSPP Female
1” nb 25.4 mm 1/2” BSPP Female
1.1/2” nb 38.1 mm 1/2” BSPP Female
2” nb 50.4 mm 1/2” BSPP Female
2.1/2” nb 63.5 mm 1/2” BSPP Female
3” nb 76.1 mm 1/2” BSPP Female
4” nb 101.6 mm 1/2” BSPP Female



Other connections are available upon request such as M8 and M10 Metric. Please ask our sales office for further details.
