KV-L61/E-PNU/DA
KV-L61/E-PNU/SA
KV-L61/E-ELE/DA

actuated valves

KV-L61/E-PNU/DA Double Acting Pneumatic Actuated (Air/Air)
KV-L61/E-PNU/SA Single Acting Pneumatic Actuated (Air/Spring)
KV-L61/E-ELE/DA Double Acting Electric Actuated

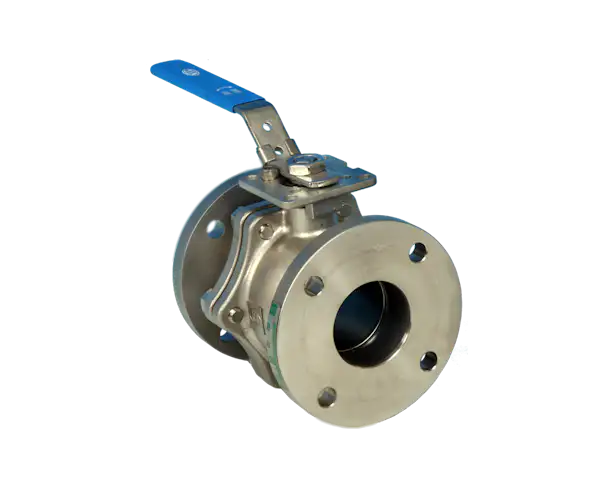

Flanged Full Bore Actuated Ball Valves

BS10 Table E end connections. ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim. TFM 1600 Ball Seats and Grafoil Body and Stem Seals.
Ta-Luft self adjusting stem sealing. ISO 5211 Direct Mount.
Anti-Static devices for Ball-Stem-Body. Fire safe certified API 607 5th Ed (ISO 10497). ANSI B16.10 Face to Face dimensions.
AtEx and Nace MR-01-75 compliant. Pressure balance hole in Ball Slot. Blow-out Proof Stem.
Available size range: sizes 2”, 3” and 4” only

Pneumatic Actuators

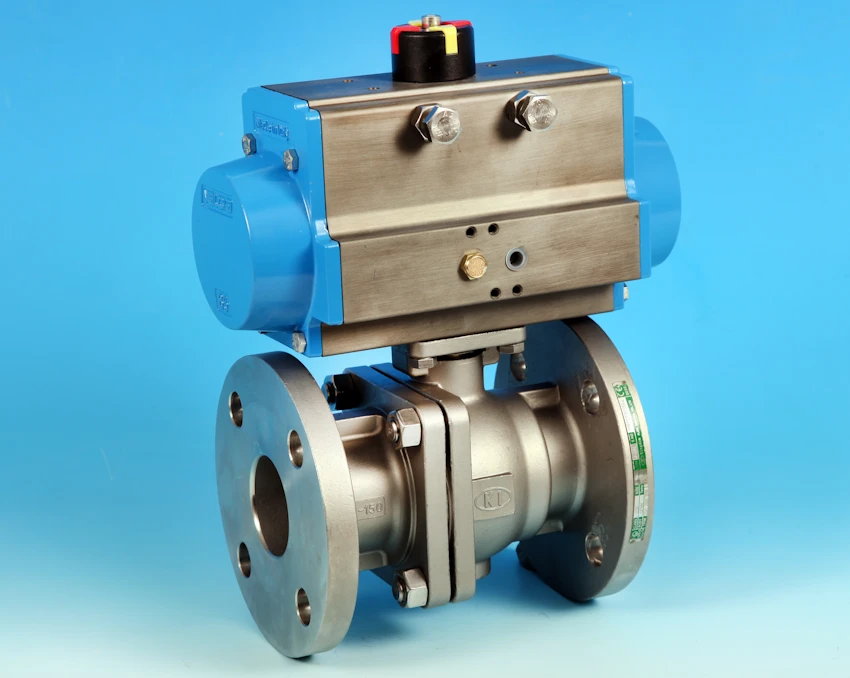

Valve shown top is fitted with quarter turn Pneumatic Aluminium Rack and Pinion Single (Air Spring) or Double (Air/Air) Acting Actuator. Actuator is Atex compliant and SIL 3 rated. Actuator Packages are fully assembled and functionally tested (dry bench test on 5.5 bar/g air supply) in house prior to dispatch.

Options include Namur Mount Pilot Solenoids, Switch Boxes, Positioners, De-Clutchable Gearboxes and alternative materials of construction, such as Stainless Steel, or special coatings, such as PTFE.

Electric Actuators

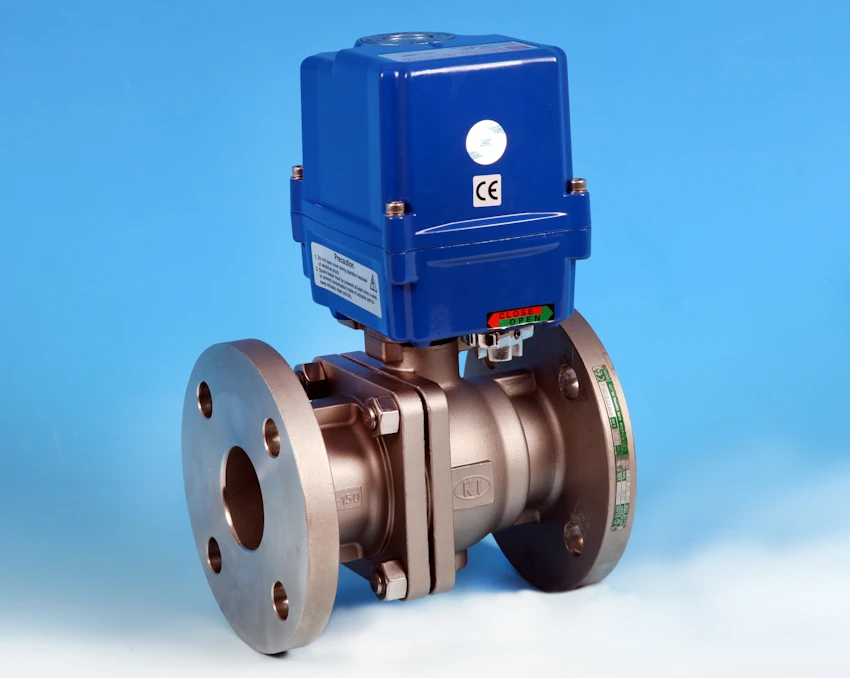

Valve shown bottom is fitted with quarter turn Electric Double Acting (Power Open/Power Close) Actuator. Model shown is HQ4/6. All electric actuators have manual override facility, open/close visual indication, IP67 rating, anti-condensation heater, four limit switches, push button terminal strip, wiring diagram and reversible motor with low power consumption. Output torques of 40 to 3,000 Nm.

Options include IP68 double sealed housing, local controls, 4-20 mA and 0-10v modulation control, Atex Eexd enclosure, High Temperature fire protection, speed control and battery back-up.

Actuator Sizing Chart

  2" 3" 4"
PNU DA 75 100 115
PNU SA 85 125 140
ELE DA HQ4 HQ15 HQ30

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
