Stainless Steel Socket Weld Gate Valve ETG GT-1SW
 S/S Socket Weld Gate Valve ETG GT-1SW
Logo

ETG GT-1SW

gate valves

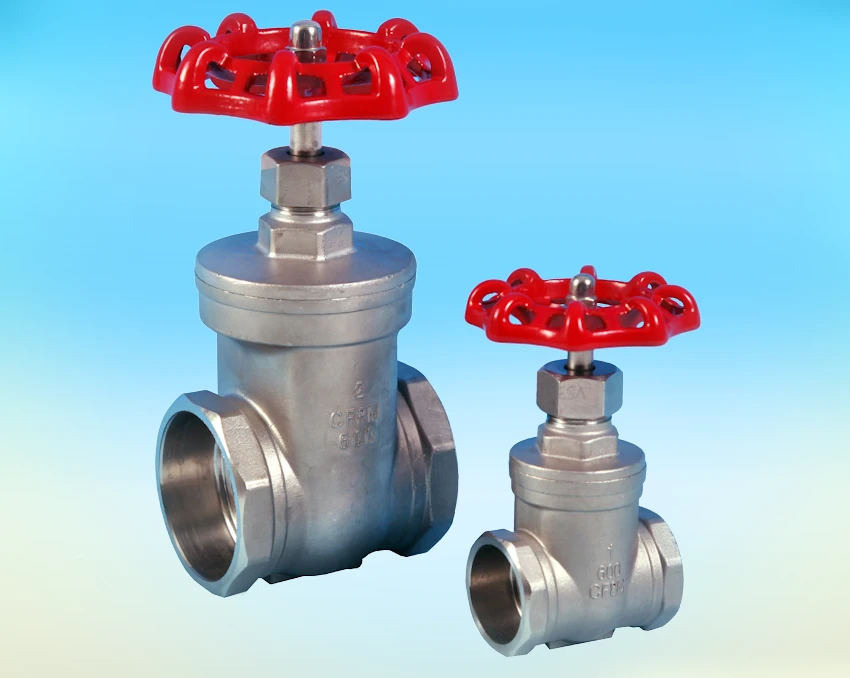

Socket Weld Gate Valve

STM A351 CF8M 316 Stainless Steel Body, Bonnet and Wedge.
316 Stainless Steel Stem and Trim. Aluminium Alloy painted Handwheel.
PTFE Gland Packing and Bonnet Seal.
Screwed Bonnet. Non-Rising Stem. Solid Wedge.
600 psi/g pressure rated.
-20 / +180 deg C Temp rated.
Socket Weld NB end connections.
CE marked in accordance with PED 2014/68/EU (from 1.1/4”).

A good all round, robust general purpose Gate Valve.
This valve offers a much more economical solution to the heavy pattern Forged Class 800# versions more commonly found in the UK market.

Available size range: 1/2” - 2”
