Valbia Pneumatic Actuators
S/Steel kvl9cbacts Valbia Pneumatic Actuators
Logo

KV-L9C/B-PNU/DA
KV-L9C/B-PNU/SA
KV-L9C/B-ELE/DA

actuated valves

KV-L9C/B-PNU/DA Double Acting Pneumatic Actuated (Air/Air)
KV-L9C/B-PNU/SA Single Acting Pneumatic Actuated (Air/Spring)
KV-L9C/B-ELE/DA Double Acting Electric Actuated

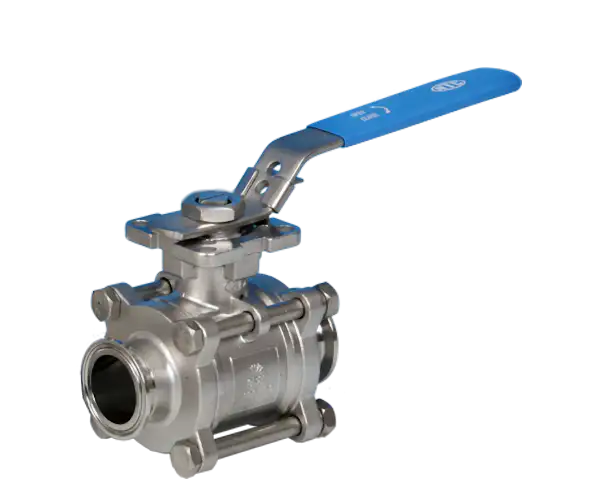

Flanged Full Bore Sanitary Actuated Ball Valves

Clamp end connections. ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim. TFM 1600 Cavity Filled Ball Seats and PTFE Seals. Ta-Luft self adjusting stem sealing. ISO 5211 Direct Mount. Anti-Static devices for Ball-Stem-Body. AtEx Certified. 400 psi/g pressure rated. Nace MR-01-75 compliant. Pressure balance hole in Ball Slot. Blow-out Proof Stem. Electro-Polished body, Mechanical Internal polish to 0.8 um. TFM 1600 is a FDA, 3A and WRAS approved and certified material.

Pneumatic Actuators

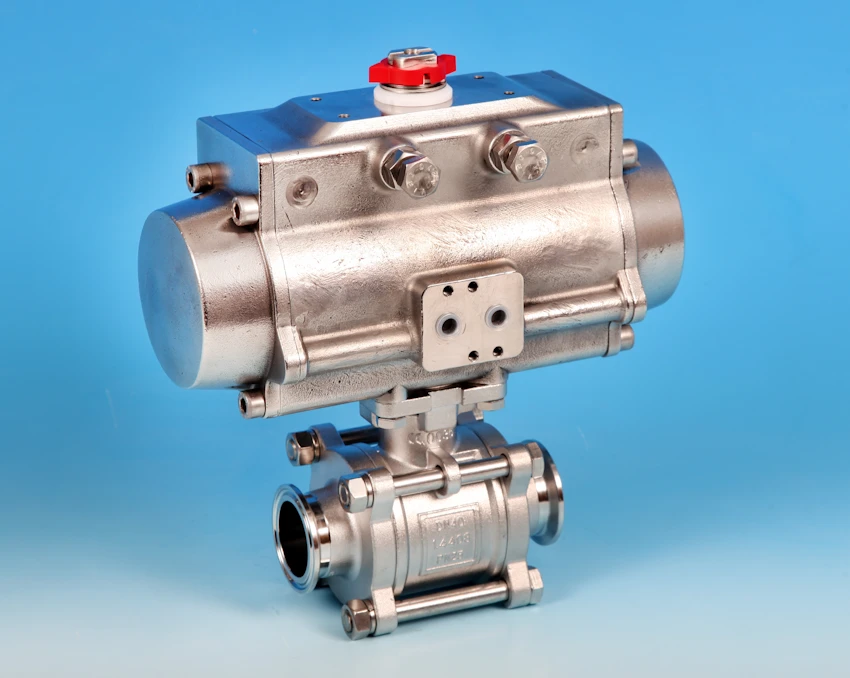

Valve shown top is fitted with quarter turn Pneumatic Stainless Steel Rack and Pinion Single (Air Spring) or Double (Air/Air) Acting Actuator. Aluminium body would be supplied as standard, Stainless Steel on special order only. Actuator is Atex compliant and SIL 3 rated. Actuator Packages are fully assembled and functionally tested (dry bench test on 5.5 bar/g air supply) in house prior to dispatch.

Options include Namur Mount Pilot Solenoids, Switch Boxes, Positioners, De-Clutchable Gearboxes and alternative materials of construction, such as Stainless Steel, or special coatings, such as PTFE.

Electric Actuators

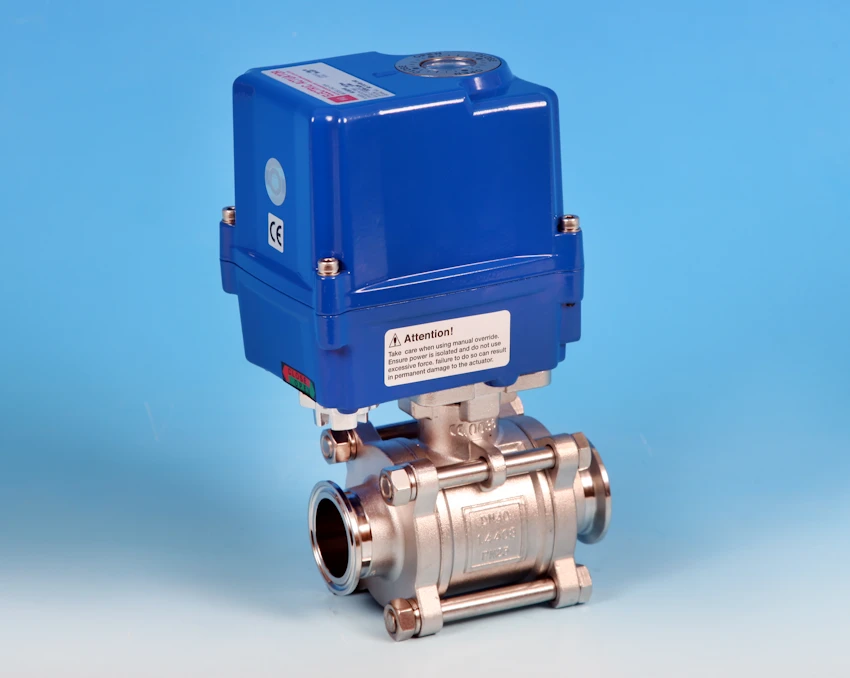

Valve shown bottom is fitted with quarter turn Electric Double Acting (Power Open/Power Close) Actuator. Model shown is HQ4/6. All electric actuators have manual override facility, open/close visual indication, IP67 rating, anti-condensation heater, four limit switches, push button terminal strip, wiring diagram and reversible motor with low power consumption. Output torques of 40 to 3,000 Nm.

Options include IP68 double sealed housing, local controls, 4-20 mA and 0-10v modulation control, Atex Eexd enclosure, High Temperature fire protection, speed control and battery back-up.

Actuator Sizing Chart

  1/2" 3/4" 1" 1.1/2" 2" 2.1/2" 3" 4"
PNU DA 52 52 63 75 75 85 100 115
PNU SA 52 52 75 85 100 115 125 160
ELE DA HQ4 HQ4 HQ4 HQ6 HQ6 HQ8 HQ15 HQ30

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
